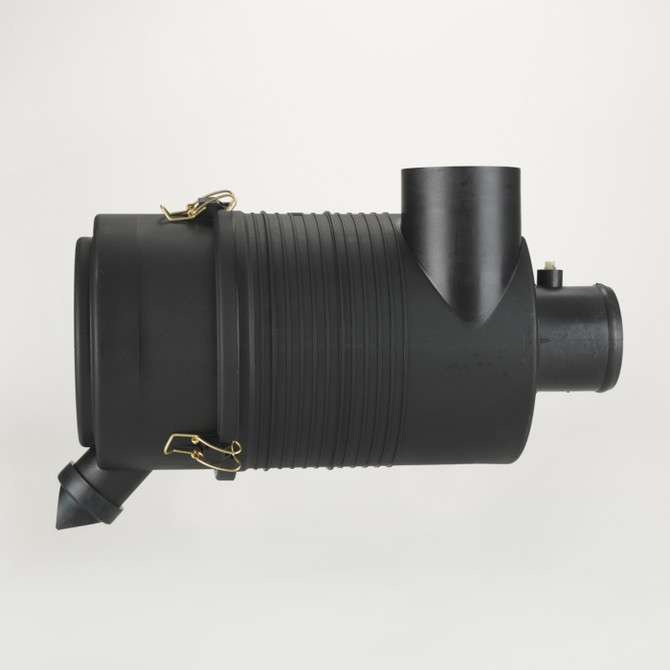

SKU:

G082525

Availability:

Call for availability

Weight:

9,390.00 Grams

Width:

25.00 (cm)

Height:

50.00 (cm)

Depth:

30.00 (cm)

Shipping:

Calculated at Checkout

Outlet Diameter:

88.9 mm (3.50 inch)

Brand:

RadialSeal™

Country Of Origin:

United States

HTS Code:

8421310052

NMFC Code:

069100-04

Gross Height:

19.6 IN

Gross Length:

11.7 IN

Gross Volume:

1.3271 FT3

Gross Weight:

6.705 LB

Gross Width:

10 IN

Style:

Radialseal

Family:

FPG

Body Length:

246.2 mm (9.69 inch)

Rated Flow HR:

6.1 m³/min (215 cfm)

Rated Flow LR:

4.7 m³/min (166 cfm)

Rated Flow MR:

5.4 m³/min (191 cfm)

Inlet Diameter:

94.996 mm (3.74 inch)

Overall Length:

461.518 mm (18.17 inch)

Restriction HR:

254 mm H2O (10.00 inch H2O)

Restriction LR:

152 mm H2O (5.98 inch H2O)

Restriction MR:

203 mm H2O (7.99 inch H2O)

Body Diameter Maximum:

212.09 mm (8.35 inch)
