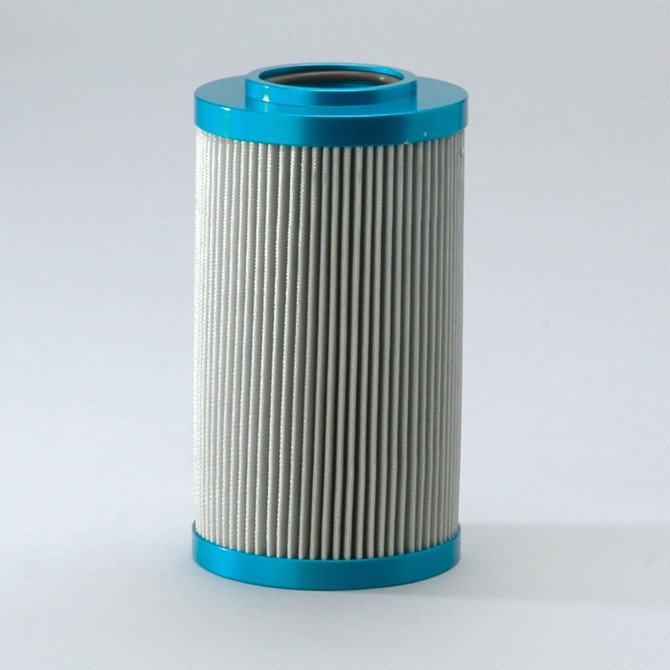

SKU:

P568717

Weight:

1,580.00 Grams

Width:

11.00 (cm)

Height:

35.00 (cm)

Depth:

11.00 (cm)

Shipping:

Calculated at Checkout

Length:

242.39 mm (9.54 inch)

Media Type:

Synthetic

Brand:

DT High-Performance

Country Of Origin:

Canada

NMFC Code:

069100-06

Gross Height:

13.4 IN

Gross Length:

4.2 IN

Gross Volume:

0.1368 FT3

Gross Weight:

4.11 LB

Gross Width:

4.2 IN

Style:

Cartridge

Overall Length:

255.1 mm (10.04 inch)

Inner Diameter:

48.11 mm (1.89 inch)

Outer Diameter:

90.7 mm (3.57 inch)

Collapse Burst:

207 bar (3002 psi)

Seal Material:

Viton

Efficiency Beta 1000:

5 micron
